Meet the Rotadorm Range
Standing devices are among the most important devices in rehabilitation and care. The stable design of our range gives patients a firm, secure hold during their daily standing training.

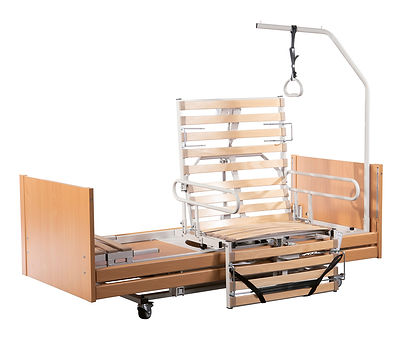

Rotadorm Care
The Rotadorm Care is the proven care bed with integrated stand-up function from ISKOmed. With its high level of functionality, this registered aid provides support and relief in everyday life for both patients and carers.
Product Details
-
85 cm wide single bed, available in 3 lengths
-
Under-bed clearance: 9 cm
-
Height, head section, neck section, thigh support, lower leg support and turning mechanism individually electronically adjustable
-
2-section special foam mattress with incontinence cover (optional)
-
6-section lying surface with wooden slats
-
Patient lifting pole with grab handle (optional)
-
Removable hand rails
-
Side rails with function lock
-
Programming and user hand control
-
Stable scissor lift system
-
Aid numbers (Germany only): 19.40.01.8003 health insurance and 50.45.01.4003 nursing care insurance
-
An orientation guide for selecting the right bed (or bed length) based on patient height can be found in the ‘Downloads’ section.
-
The product images on this page show the standard version of the stand-up bed. The final product changes visually due to optional equipment (to be found in the “Extra equipment/optional” section)
Technical Details
-
Mattress width: 85 cm
-
Mattress length: 200/210/220 cm
-
Bed height: 40 – 80 cm
-
Max. patient weight: 135 kg
-
Safe working load: 175 kg
Extra Equipment
-
Lying surface dimension: 85 x 200 cm (SI-011-1)
-
Lying surface dimension: 85 x 210 cm (SI-011-21)
-
Lying surface dimension: 85 x 220 cm (SI-011-22)
-
Turningside: left
-
Turningside: right
-
Mattress (Prime-Care)
-
Height: 12 cm · Material: SoliCore HRC
Details -
Mattress (Combi-Care)
-
Height: 15 cm · Material: SoliCore HRC + SensiDense
Details -
Alternating pressure system
-
SLK III digital – alternating pressure system
Details -
Infrared control
-
Patient lifting pole with grab handle (NS-024-5)
-
provides secure and stable support to make it easier to sit up or change position in bed
-
Grab handle (SI-011.85.307)
-
serves as a positioning aid in the bed, is mounted on the head end of the bed frame
-
Cover for handle receptacle (SI-011.80.725)
-
enables getting out of bed to the side
-
Table (SI-132-0)
-
serves as storage option during sitting posture, mounting on hand rail over wire frame, dimensions: 365 x 265 x 10 mm
-
Transport rack (TRANSP-08)
-
to assist with transport, deposit € 300
-
Battery pack with charging circuit (SI-012.85.120)
-
safety equipment for power failure – all electrical functions can thus be returned to the initial position even without mains voltage
-
Bedside cabinet (OM-011-B)
-
with extendable table top
(Dimensions: 34 x 57 x 88 cm)
(Table top: 59 x 33 cm) -
Bedside cabinet (OM-021-B)
-
with extendable table top – height adjustable
(Dimensions: approx. 34 x 68 x 88 cm)
(Table top: 57 x 34 cm) -
Pillow clips (SI-038-0)
-
only needed for bed sheets in special colours – securing the pillow in position when the headrest is raised to aid comfort and convenience
Rotadorm Edition
Our proven care bed, with stand-up function, has been completely redesigned especially for the care-home sector. The elegant combination of contemporary wood finish and attractive dark grey framework complemented by an optional fabric cover in various colours and patterns, offers you a stylish addition to the functionality of our tried-and-tested stand-up bed. We also offer an option of tailored sheets and pillow cases in a wide range of colours to add a splash of colour and comfort to the mattress supplied with the bed. Explore the range of accessories to choose from to add even greater convenience and comfort to the bed.
Product Details
-
85 cm wide lying surface, available in 3 lengths
-
Under-bed clearance: 9 cm (optional up to 15 cm)
-
Height, head section, neck section, thigh support, lower leg support and turning mechanism individually electronically adjustable
-
2-section special foam mattress with incontinence cover and decubitus prophylaxis (optional)
-
6-section lying surface with wooden slats
-
Patient lifting pole with grab handle (optional)
-
Removable hand rails (optional)
-
User hand control with 6 functions
-
Programming hand control (optional)
-
Stable scissor lift system
-
Central braking system (optional)
-
Headboard and footboard in different design variants (wood/fabric)
-
Elegant colour combinations
-
Fabric cover available in two different patterns (square stitched/rhombus stitched pattern)
-
Fabric cover available in various colours
-
An orientation guide for selecting the right bed (or bed length) based on patient height can be found in the ‘Downloads’ section. (Specifications Rotadorm Care)
-
The product images on this page show the different versions of the care-home stand-up bed. The final product changes visually due to optional equipment (to be found in the “Extra equipment/optional” section), such as an additional table. If you have any questions regarding an order, please do not hesitate to contact us
Technical Details
-
Total length: 100 – 103 cm
-
Total width: 73 – 78 cm
-
Tie bar height: 80 – 100 cm
-
Tie bar width: 49 cm
-
Table height: 100 – 132 cm
-
Table width: 64 cm
-
Table length: 58 cm
-
Max. patient weight: 120 kg
-
Min./Max. patient height: 140 – 200 cm
Extra Equipment
-
Lying surface dimension: 85 x 200 cm (SI-011-1)
-
Lying surface dimension: 85 x 210 cm (SI-011-21)
-
Lying surface dimension: 85 x 220 cm (SI-011-22)
-
Turningside: left
-
Turningside: right
-
Mattress (Prime-Care)
-
Height: 12 cm · Material: SoliCore HRC
Details -
Mattress (Combi-Care)
-
Height: 15 cm · Material: SoliCore HRC + SensiDense
Details -
Alternating pressure system
-
SLK III digital – alternating pressure system
Details -
Infrared control
-
Patient lifting pole with grab handle (NS-024-5)
-
provides secure and stable support to make it easier to sit up or change position in bed
-
Grab handle (SI-011.85.307)
-
serves as a positioning aid in the bed, is mounted on the head end of the bed frame
-
Cover for handle receptacle (SI-011.80.725)
-
enables getting out of bed to the side
-
Table (SI-132-0)
-
serves as storage option during sitting posture, mounting on hand rail over wire frame, dimensions: 365 x 265 x 10 mm
-
Transport rack (TRANSP-08)
-
to assist with transport, deposit 300 €
-
Battery pack with charging circuit (SI-012.85.120)
-
safety equipment for power failure – all electrical functions can thus be returned to the initial position even without mains voltage
-
Bedside cabinet (OM-011-B)
-
with extendable table top
(Dimensions: 34 x 57 x 88 cm)
(Table top: 59 x 33 cm) -
Bedside cabinet (OM-021-B)
-
with extendable table top – height adjustable
(Dimensions: approx. 34 x 68 x 88 cm)
(Table top: 57 x 34 cm) -
Pillow clips (SI-038-0)
-
only needed for bed sheets in special colours – securing the pillow in position when the headrest is raised to aid comfort and convenience
Rotadorm Low
The Rotadorm Low was developed as a stand-up bed for people under 165 cm / 5’5″ tall. It offers all the functionalities of the Rotadorm series, such as individually adjustable frame elements and the option of saving all individual settings for daily use.
Product Details
-
85 cm wide single bed, adjustable to 3 lengths
-
Under-bed clearance: 2 cm
-
For individual stand-up procedure with low seat height
-
Height, head section, neck section, thigh support, lower leg support and turning mechanism individually electronically adjustable
-
2-section special foam mattress with incontinence cover (optional)
-
6-section lying surface with wooden slats
-
Patient lifting pole with grab handle (optional)
-
Removable hand rails
-
Programming and user hand control
-
Optional battery backup
-
Stable scissor lift system
-
Individually braked double swivel castors
Technical Details
-
Mattress width: 85 cm
-
Mattress length: 200/210/220 cm
-
Bed height: 34 – 78 cm
-
Max. patient weight: 135 kg
-
Safe working load: 175 kg
Extra Equipment
-
Lying surface dimension: 85 x 200 cm (SI-012-1)
-
Lying surface dimension: 85 x 210 cm (SI-012-21)
-
Lying surface dimension: 85 x 220 cm (SI-012-22)
-
Turningside: left
-
Turningside: right
-
Mattress (Prime-Care)
-
Height: 12 cm · Material: SoliCore HRC
Details -
Mattress (Combi-Care)
-
Height: 15 cm · Material: SoliCore HRC + SensiDense
Details -
Alternating pressure system
-
SLK III digital – alternating pressure system
Details -
Infrared control
-
Patient lifting pole with grab handle (NS-024-5)
-
provides secure and stable support to make it easier to sit up or change position in bed
-
Grab handle (SI-011.85.307)
-
serves as a positioning aid in the bed, is mounted on the head end of the bed frame
-
Cover for handle receptacle (SI-011.80.725)
-
enables getting out of bed to the side
-
Table (SI-132-0)
-
serves as storage option during sitting posture, mounting on hand rail over wire frame, dimensions: 365 x 265 x 10 mm
-
Transport rack (TRANSP-08)
-
to assist with transport, deposit € 300
-
Battery pack with charging circuit (SI-012.85.120)
-
safety equipment for power failure – all electrical functions can thus be returned to the initial position even without mains voltage
-
Bedside cabinet (OM-011-B)
-
with extendable table top
(Dimensions: 34 x 57 x 88 cm)
(Table top: 59 x 33 cm) -
Bedside cabinet (OM-021-B)
-
with extendable table top – height adjustable
(Dimensions: approx. 34 x 68 x 88 cm)
(Table top: 57 x 34 cm) -
Pillow clips (SI-038-0)
-
only needed for bed sheets in special colours – securing the pillow in position when the headrest is raised to aid comfort and convenience
Rotadorm Max / Max Low
The Max version of our Rotadorm bed series offers larger patients, over 165 cm / 5’5″ tall stability in everyday life, whether sleeping or getting up. The Max Low version is ideal for people under 165 cm / 5’5″ tall.
Product Details
-
100 cm wide lying surface, adjustable to 3 lengths
-
Under-bed clearance:
Rotadorm Max: 9 cm
Rotadorm Max Low: 2 cm -
Height, head section, neck section, thigh support, lower leg support and turning mechanism individually electronically adjustable
-
2-section heavy-duty foam mattress with incontinence cover (optional)
-
6-section lying surface with wooden slats
-
Patient lifting pole with grab handle (optional)
-
Removable hand rails
-
Programming and user hand control
-
Optional battery backup
-
Stable scissor lift system
-
Individually braked double swivel castors
-
Emergency release for rotating mechanism for Rotadorm Max Low
-
An orientation guide for selecting the right bed (or bed length) based on patient height can be found in the ‘Downloads’ section.
-
The product images on this page show both the version of the Rotadorm Max with a height adjustment range of 40 – 80 cm, and the version Max Low (images are marked accordingly) with a height adjustment range of 34 – 78 cm. In addition, in the images you can see the version of Rotadorm Max with mattress both with and without a white sheet (with built in pillow case) – the sheet is optionally available
Technical Details
-
Mattress width: 100 cm
-
Mattress length: 200/210/220 cm
-
Bed height: 40 – 80 / 34 – 78 cm
-
Max. patient weight: 180 kg
-
Safe working load: 220 kg
Extra Equipment
-
Rotadorm Max (bed height: 40 – 80 cm)
-
Rotadorm Max Low (bed height: 34 – 78 cm)
-
Lying surface dimension: 100 x 200 cm
-
Lying surface dimension: 100 x 210 cm
-
Lying surface dimension: 100 x 220 cm
-
Turningside: left
-
Turningside: right
-
Mattress (Prime-Care)
-
Height: 12 cm · Material: SoliCore HRC
Details -
Mattress (Combi-Care)
-
Height: 15 cm · Material: SoliCore HRC + SensiDense
Details -
Mattress (Bariatric-Memory)
-
Height: 16 cm · Material: SoliCore HRC + SensiDense
Details -
Alternating pressure system
-
SLK III digital – alternating pressure system
Details -
Infrared control
-
Patient lifting pole with grab handle (NS-024-5)
-
provides secure and stable support to make it easier to sit up or change position in bed
-
Cover for handle receptacle (SI-011.80.725)
-
enables getting out of bed to the side
-
Transport rack (TRANSP-08)
-
to assist with transport, deposit € 300
-
Battery pack with charging circuit (SI-012.85.120)
-
safety equipment for power failure – all electrical functions can thus be returned to the initial position even without mains voltage
-
Bedside cabinet (OM-011-B)
-
with extendable table top
(Dimensions: 34 x 57 x 88 cm)
(Table top: 59 x 33 cm) -
Bedside cabinet (OM-021-B)
-
with extendable table top – height adjustable
(Dimensions: approx. 34 x 68 x 88 cm)
(Table top: 57 x 34 cm) -
Pillow clips (SI-038-0)
-
only needed for bed sheets in special colours – securing the pillow in position when the headrest is raised to aid comfort and convenience
Rotadorm Mobil
The Rotadorm Mobil was developed for use in short-term care at home. The stand-up bed can be quickly and easily assembled and disassembled and stowed away to save space when it is not needed. Four individual settings can be saved using the service handset, which are a practical aid for patients and carers in everyday life.
Product Details
-
Mobile single bed with 90 cm width, adjustable to two lengths
-
Under-bed clearance: 1 – 41 cm
-
Four programmable positions: lying, turning, sitting and standing up
-
2-section special foam mattress with incontinence cover (optional)
-
5-section lying surface with wooden slats
-
Patient lifting pole with grab handle (optional)
-
Trendelenburg and anti-Trendelenburg positioning possible
-
Additional stand-up function through programmable tilting of the thigh support
-
Braking system on head and foot side
-
Transport dimensions: 80 x 96 x 109 cm (W x L x H)
-
Transport adapter included
-
Easy to transport and store thanks to small dimensions
-
Removable hand rails
-
Aid numbers (Germany only): 19.40.01.8005 health insurance and 50.45.01.4005 nursing care insurance
-
An orientation guide for selecting the right bed (or bed length) based on patient height can be found in the ‘Downloads’ section.
Technical Details
-
Mattress width: 90 cm
-
Mattress length: 200/210 cm
-
Bed height: 31 – 81 cm
-
Max. patient weight: 135 kg
-
Safe working load: 175 kg
Extra Equipment
-
Lying surface dimension: 90 x 200 cm (SI-013-1)
-
Lying surface dimension: 90 x 210 cm (SI-013-21)
-
Mattress (Prime-Care)
-
Height: 12 cm · Material: SoliCore HRC
Details -
Alternating pressure system
-
SLK III digital – alternating pressure system
Details -
Infrared control
-
Patient lifting pole with grab handle (NS-024-0)
-
provides secure and stable support to make it easier to sit up or change position in bed
-
Cover for handle receptacle (SI-011.80.725)
-
enables getting out of bed to the side
-
Table (SI-132-0)
-
serves as storage option during sitting posture, mounting on hand rail over wire frame, dimensions: 365 x 265 x 10 mm
-
Bedside cabinet (OM-011-B)
-
with extendable table top
(Dimensions: 34 x 57 x 88 cm)
(Table top: 59 x 33 cm) -
Bedside cabinet (OM-021-B)
-
with extendable table top – height adjustable
(Dimensions: approx. 34 x 68 x 88 cm)
(Table top: 57 x 34 cm) -
Pillow clips (SI-038-0)
-
only needed for bed sheets in special colours – securing the pillow in position when the headrest is raised to aid comfort and convenience
Get A Quote
If you would like a quote for our standing frames please submit a request through our online form or contact us directly on the below details.
You may get a call back from us to discuss your requirements in more detail to be able to advise the correct equipment for your needs.
07759 448 118
